Connecting the breakout box: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Special tools:

9511373

9511428

Fig 1: Breakout Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off
Expose the heater.

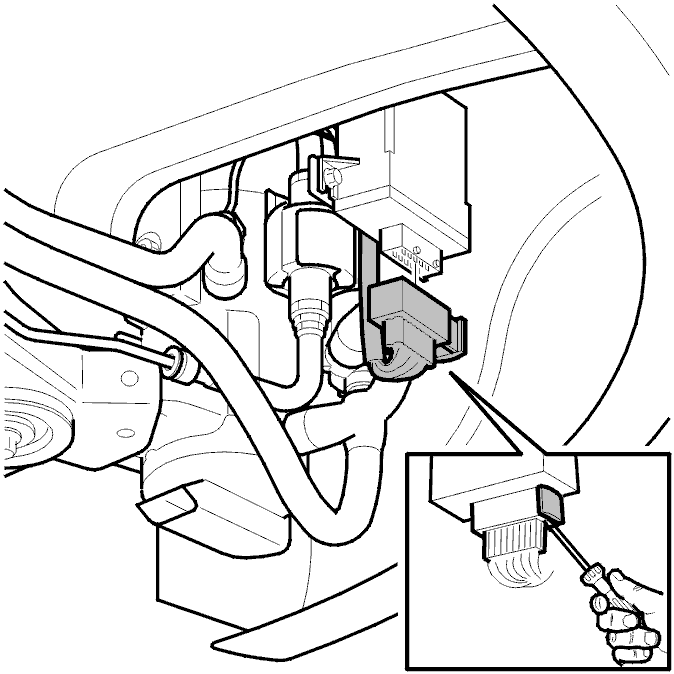

Fig 2: Releasing Catch Using Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a screwdriver between the control module connector and its locking handle.

Turn the screwdriver to release the catch.

Continue pulling the locking handle outwards until the connector comes away from the control module.

Connect adapter 9511373 to the control module connector. Connect breakout box 9511428 to the adapter.

Disconnect the breakout box in reverse order.

For the location of the components, see Engine coolant heater, component location .
