Removing the ashtray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

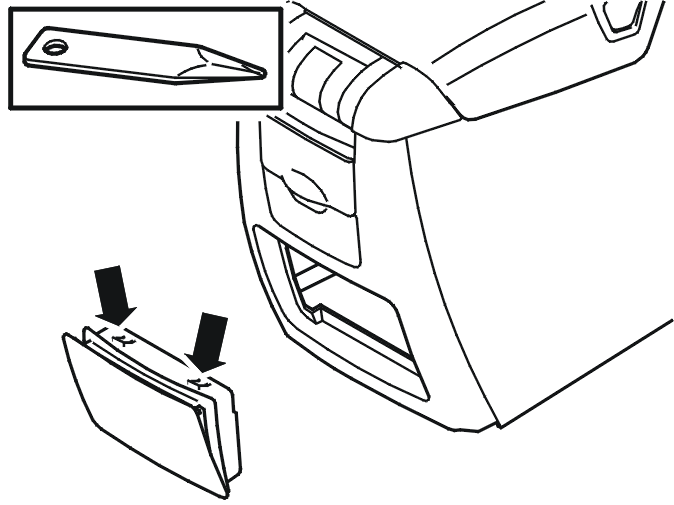

Fig 1: Identifying Ashtray Opened So That It Passes Hooks
GLL142607Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the ashtray so that it passes the hooks. Remove the holder for the ashtray. Press the catches down and remove the holder.
