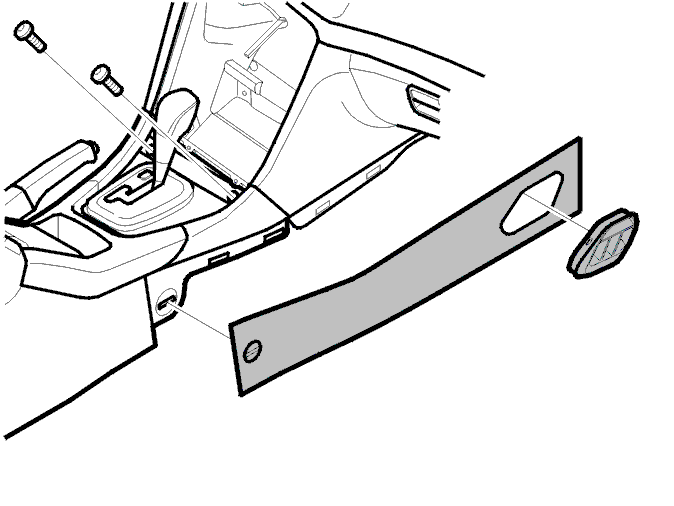

Side panel, replacing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the soundproofing panel
- Move the front seat to the rearmost position
- Turn the clips a 1/4 turn.
HINT: Use a washer or a coin.
- Slide the panel backwards
- Remove the panel.
- Unsnap the nozzle.
Install:
In reverse order.
