Replacing the lock button and indicator
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

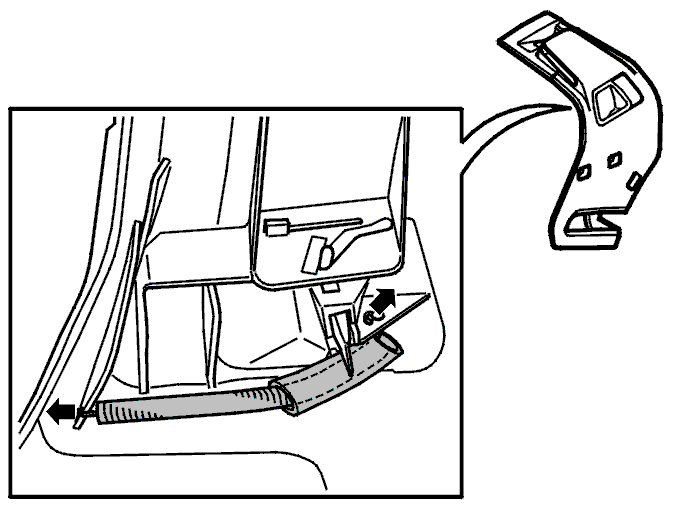

- Remove the lock side piece according to Replacing the lock side piece
- Remove the spring and sleeve
- Press the button inwards at the bottom edge
- Lift the inner cover to remove the indicator.
