Carphone box
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

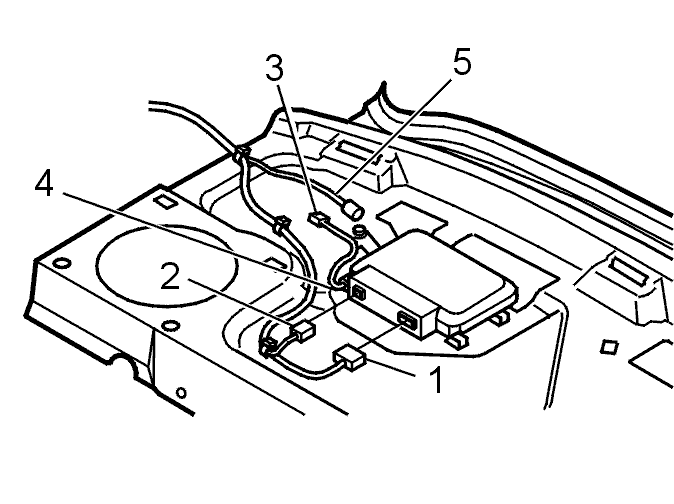

Remove:
- the rear seat cushion according to see Cushion
- the side cushion according to see Side cushion
- the parcel shelf according to see Parcel shelf .
- the three connectors
- one retaining clip.
- the unit.
Install:
In reverse order.
