Open the housing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

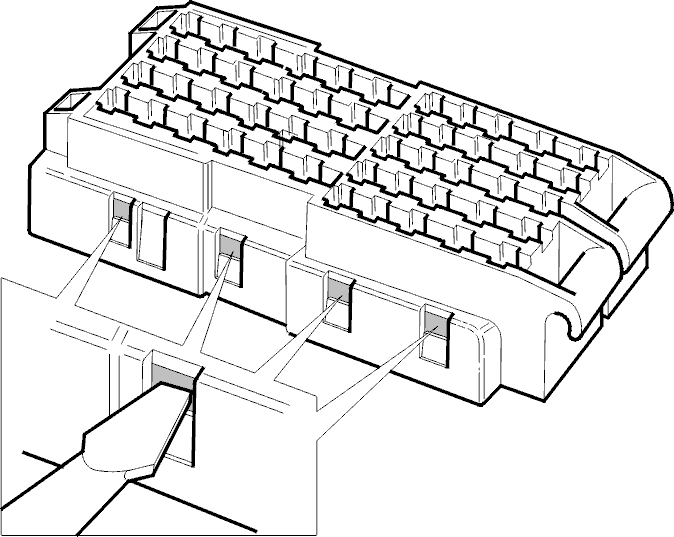

Hold the housing as shown and open the secondary locking as follows:
- Using a small screwdriver press the catches on the secondary locking in from the side shown in the illustration. A "click" will be heard.
When the secondary locking is pressed in the locking cover slides open and the cavities open.
