Open the housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

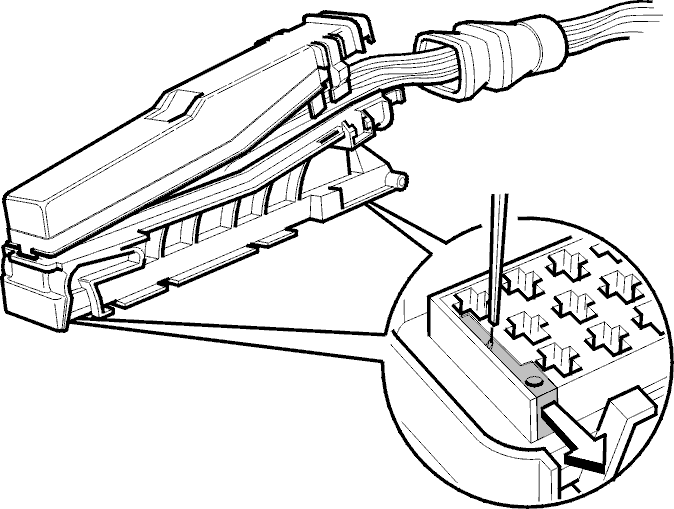

Fig 1: Identifying Releasing Secondary Locking Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the secondary locking catches (one on each side) as follows:

Insert a narrow screwdriver blade as shown. Carefully bend back the catch at the edge and push the secondary locking slightly forwards (approx. 1 mm).
