Reassemble the connector

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

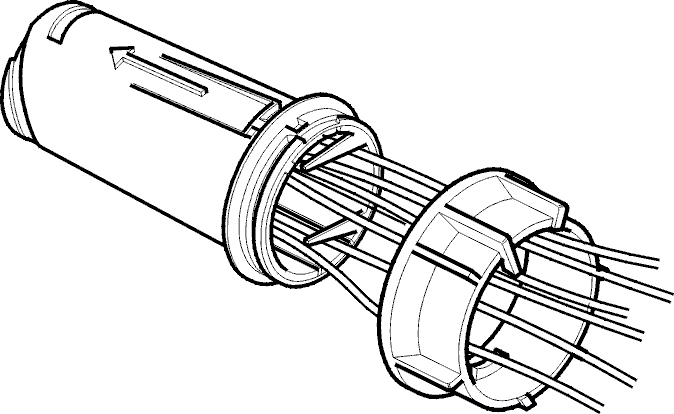

Fig 1: Identifying Connector Opening

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the pin housing in the outer shell. The tab slot should be lined up with the guide groove.
Insert the inner tube in the outer shell. Line up the slot with the guide groove. Press the inner tube firmly in so the catches engage in the correct position.

Fig 2: Identifying Pin And Socket Housing Separation From Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the retainer ring on the pin housing and turn the ring clockwise until the catch engages.
