Battery disconnecting and connecting: Removal: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components.

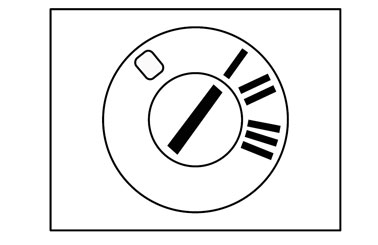

Fig 1: Identifying Ignition In ACC Position
GLL169728Courtesy of VOLVO CARS OF NORTH AMERICA.

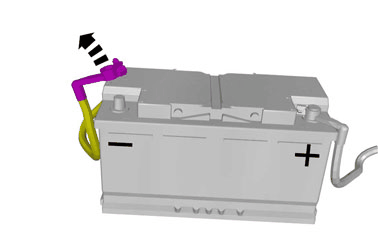

Fig 2: Identifying Negative Battery Cable
GLL169729Courtesy of VOLVO CARS OF NORTH AMERICA.
