Battery disconnecting and connecting: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

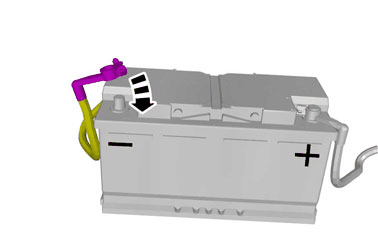

Fig 1: Identifying Connecting Of Negative Terminal

Courtesy of VOLVO CARS OF NORTH AMERICA.

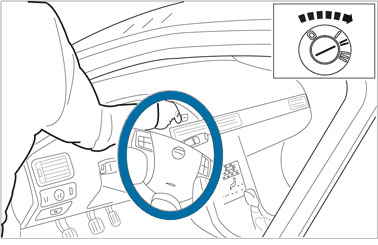

Fig 2: Identifying Ignition In ON Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING:

When switching the ignition on first time after a battery disconnect and connect, stand outside the vehicle and reach into the vehicle keeping clear of the air bags operating areas.

Set the clock.
