Heating the crimping sleeve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

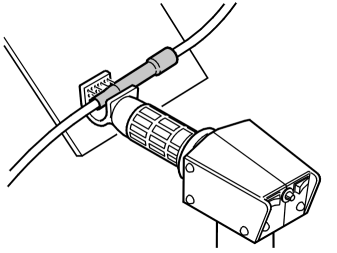

Fig 1: Heating Heat-Shrink Tubing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hold a putty knife or other suitable protection behind the heat-shrink tubing to shield the surrounding components from heat.

Heat the sleeve with hot air gun: 9512777 and a suitable nozzle. It is important that the heat-shrink tubing is shrunk around the cable. It should be possible to see some adhesive that has squeezed out around the cable.

Fig 2: Checking Shrinking Results

Courtesy of VOLVO CARS OF NORTH AMERICA.
