Protecting the concentric slave cylinder (CSC)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

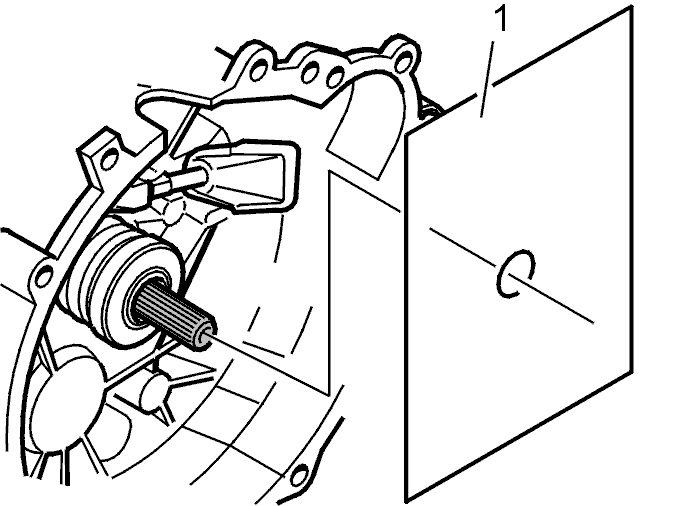

Fig 1: Identifying Sheet Of Paper And Input Shaft For Gearbox
GLL100967Courtesy of VOLVO CARS OF NORTH AMERICA.

Place a sheet of paper on the input shaft for the gearbox.

NOTE:

Paper must be used as protection. The cleaning spray contains mineral oil. Mineral oil can damage the seal in the throwout bearing (cars with a concentric slave cylinder). Cars manufactured from model year 1998 have a concentric slave cylinder.
