Gear selector assembly stop, removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

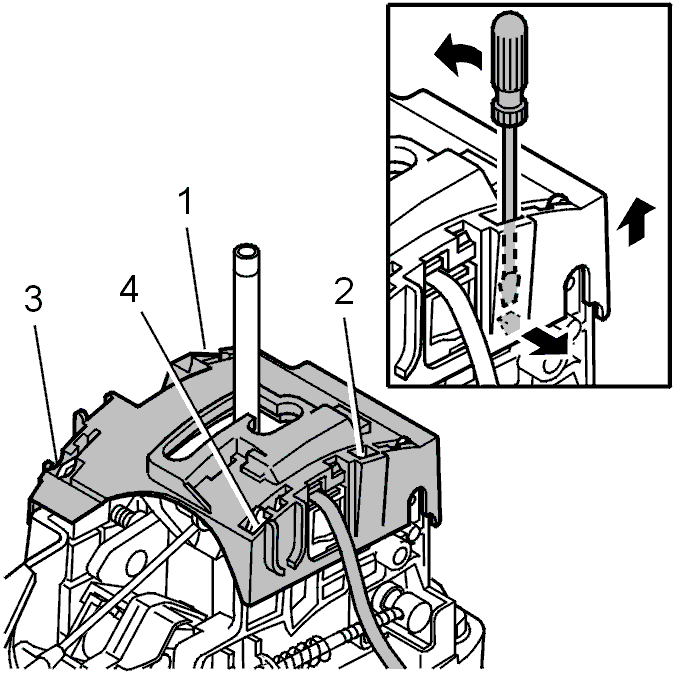

Fig 1: Identifying Removal of Gear Selector Assembly Stop

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a screwdriver.

Insert the screwdriver in the slots (1-4). Carefully pry in towards the gear selector assembly with the screwdriver. Pull the gear selector assembly stop up to release the locking
