Gear selector assembly stop, installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

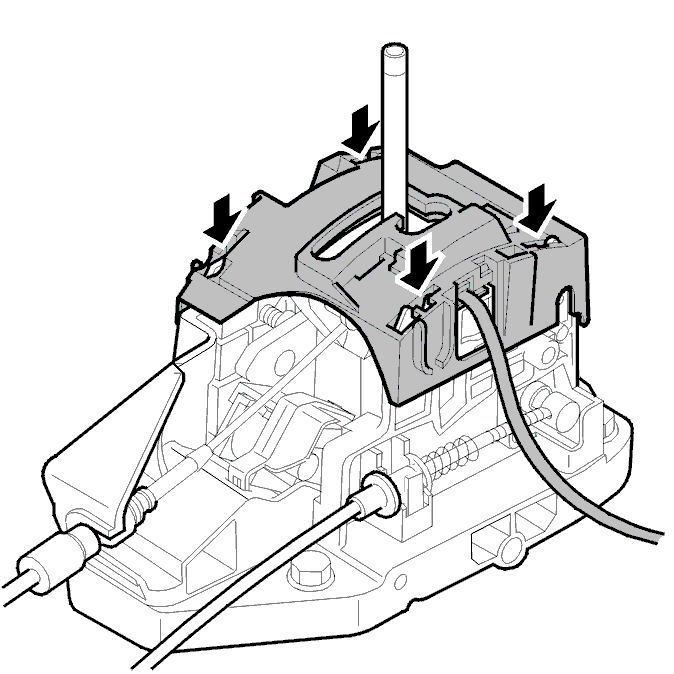

Fig 1: Identifying Installation Of Gear Selector Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the gear selector assembly stop into place in the gear selector assembly.

NOTE:

Check that the gear selector assembly stop is securely in place.
