Location of components, fuel supply control system (-2000): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For the location of components for 2001- , see Location of components (2001-) .

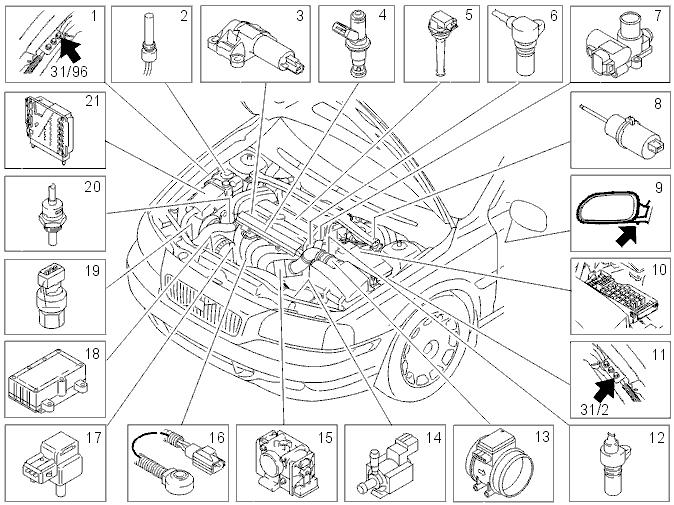

Fig 1: Identifying Engine Equipment, Ignition And Control System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Location of components

Engine control module (ECM) ground terminal
Coolant level sensor
Camshaft reset valve
Injector
Ignition coil
Camshaft position sensor (CMP)
Air assisted control valve (AACV)
Brake pedal sensor
Outer temperature sensor
Relay box / fuse box
Engine cooling fan (FC) ground terminal
Engine speed (RPM) sensor
Mass air flow (MAF) sensor with integrated temperature sensor
Canister purge (CP) valve
Throttle unit
Knock sensor (KS)
Manifold absolute pressure (MAP) sensor
Engine cooling fan (FC) control module
A/C pressure sensor
Engine coolant temperature (ECT) sensor
Engine control module (ECM).
