Windshield wiper arms
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the protective cover from the nut

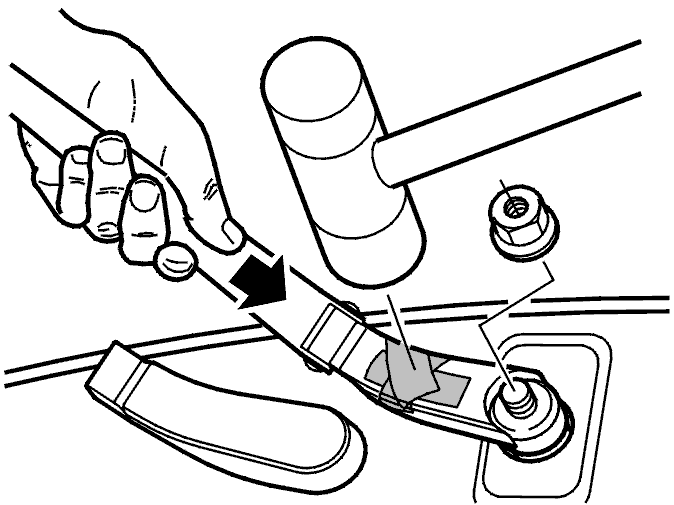

- Protect the rear edge of the hood and the wiper arm. Use tape for example (as shown in the illustration)
- Slacken off the nut for the wiper arm a few turns. Leave the nut in place to protect the threads on the shaft journal
- Press the wiper arm downwards. Tap it gently. Use a plastic mallet (as shown in the illustration)
- Remove the nut and wiper arm.
