Windshield wiper mechanism
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the windshield wiper arms. See Wiper arm / blade, windshield, replacing
- Remove the plenum chamber and gutter. See Cowl and gutter, replacing
- Disconnect the 2 connectors from the wiper motor

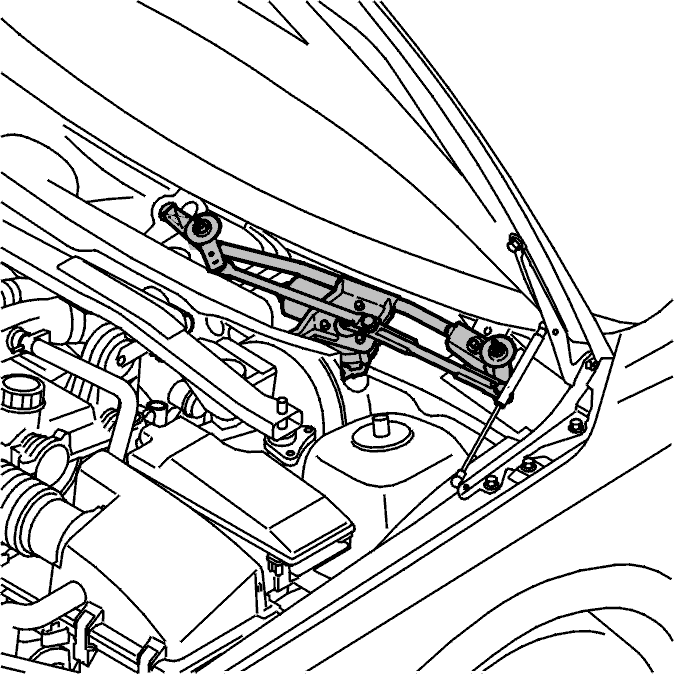

- Remove the screws from the mechanism. Remove the lug from the rubber bushing.
