Plenum chamber

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper. See Wiper mechanism, windshield, replacing .

Fig 1: Removing Rubber Seal By Releasing Clip And Catch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rubber seal by releasing the clip and catch (A).

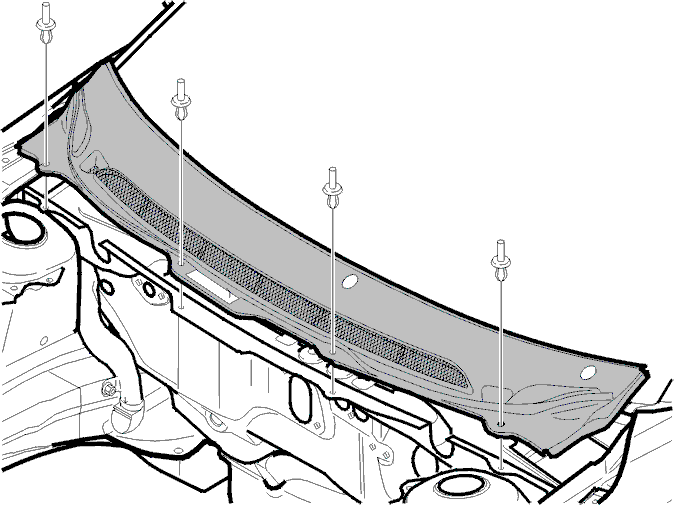

Fig 2: Removing Clips And Raising Plenum Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

The plenum cover is secured by four plastic rivets.
Press in the center of the rivet head and remove the clips.
Raise the plenum cover.
Detach the drainage hoses.

Fit in reverse order.
