Removing the inlet valve / overfill protection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Always clean around any connections that will be disconnected. This is to prevent contaminants from entering the system.
CAUTION:
Remove the level sensor before removing the inlet valve. This is because the inlet valve catches on the level sensor during installation / removal

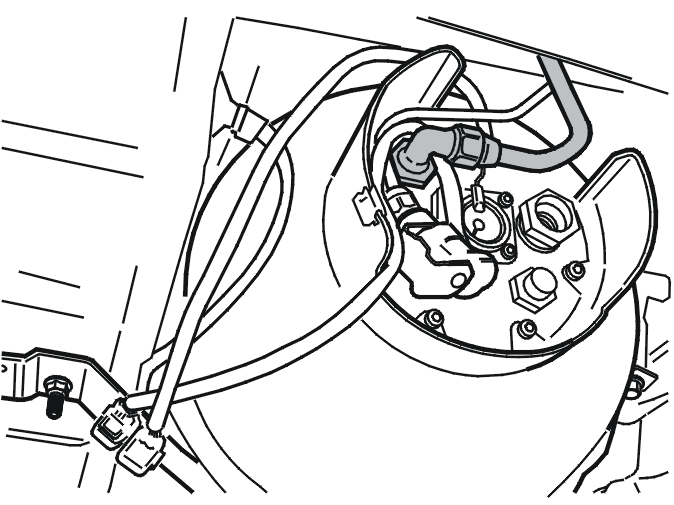

Remove:
- the guard for the gas tank. Drain the tank
- the gas pipe
- the connector
- the valve.
