Installing the inlet valve / overfill protection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before installation, check that the pipe ends and connections are undamaged.

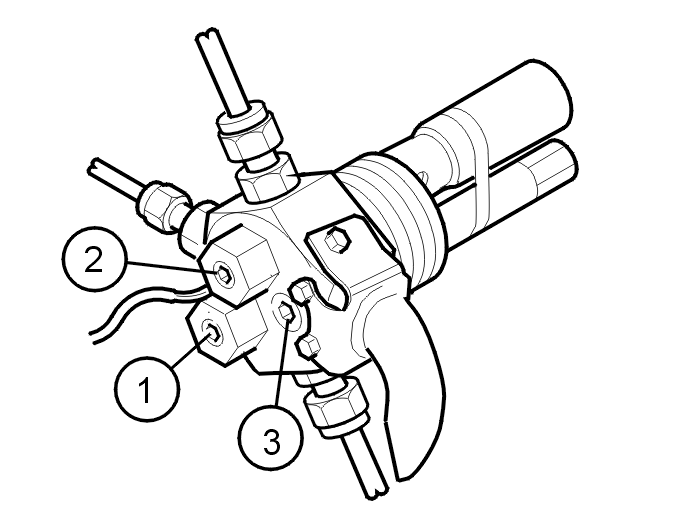

Install the valve. Use thread sealant 116 1056 when installing.
Tighten to 80 Nm . Then turn the valve to the correct position (maximum one revolution).
WARNING:
For safety reasons, ensure that the valve is installed facing in the correct direction. See the marking on the inlet valve which should point upwards.
If the valve is new . Install the angle nipple on the valve. Tighten to the correct angle.
Install:
- the connector
- the guard for the gas tank.
Connect the connector in the cargo compartment.
