Installing the bevel gear / chain housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

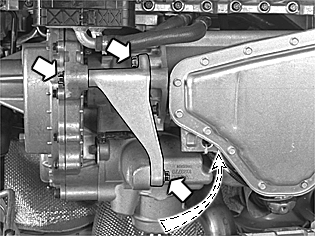

Fig 1: Locating Screw For The Bevel Gear/Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Two people are required to carry out the following procedure as the bevel gear/chain housing is relatively large.

NOTE:

Make sure that the chain housing's shaft journal does not damage the seal in the transmission end.

Lift up the unit and align the shaft journal in the gearbox. Do not press the unit end in.

Install the bracket and guide sleeve in the gearbox. Press in the unit.

Install all 4x M10 screws loosely. Tighten crosswise lightly. Then tighten the screws.
