Filling and checking oil

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

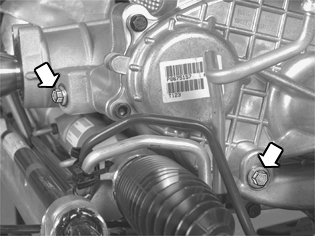

Fig 1: Locating Chain Housing Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fill and check the oil in:

bevel gear. Use the right oil. See: Lubrication transmission .
Correct volume 650 ml.

Fill with oil up to the filling plug. Draw out 0.1 l oil.

Tighten the filling plug. See Tightening torque .
chain housing. Only use oil with P/N 116 1745-3 (1 liter). Tighten according to Tightening torque
