Remove the left drive shaft from the transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

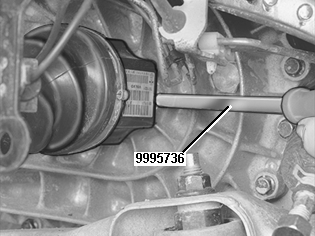

Fig 1: Identifying Left Drive Shaft Removed From Transmission Using 2 Jimmy Tools 999 5736

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use 2 jimmy tools 9995736 .

NOTE:

Do not damage the seal.

NOTE:

Never pull the drive shaft in a way that could cause the joints to separate. The joints do not have axial pinions.
