Remove the front cross member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

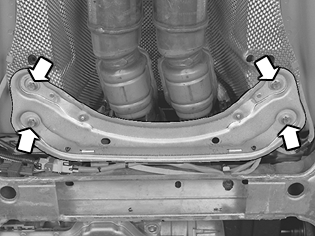

Fig 1: Front Cross Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 4 screws
the 2 screws for the rubber mounting of the exhaust pipe
the brake pipe from its holders
the member.

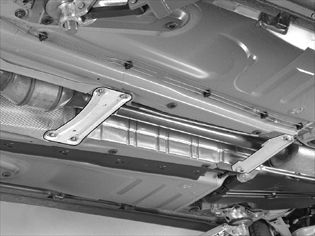

Fig 2: Center And Rear Cross Members

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the center and rear cross members.

Remove the screw so that the cross member hangs free.
