Disconnect the connectors. Disconnect the transmission cables

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

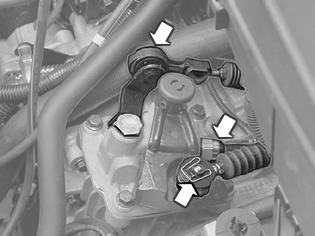

Fig 1: Identifying Transmission Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector for the ABS control module
the connector for the back-up (reversing) light switch
the lock for the transmission cables from the levers
the transmission cables from their mountings on the transmission (pull the clips upwards).

Secure the cables to the ABS brake pipes.
