Removing engine compartment components
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the air cleaner (ACL) housing assembly. Remove the air cleaner (ACL) housing
- the throttle body (TB) charge air pipe from the charge air cooler (CAC). Using a heat gun, carefully heat around the pipe at the charge air cooler (CAC). Work the pipe off
- the upper oil hose from the oil cooler. Plug the hose and the oil cooler with plastic plugs.
Continue removing engine compartment components

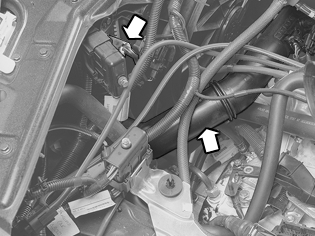

Remove the screw from the clamp around the oil hose on the right-hand side at the mounting in the body.
Remove the upper engine stabilizer brace
