Installing the fan shroud

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

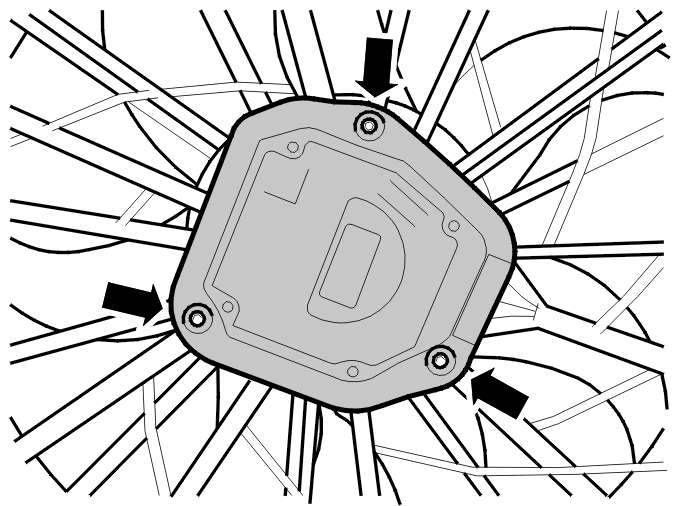

Fig 1: Identifying Fan Shroud And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the fan shroud
the 3 M5 screws for the blower fan motor.

Secure the cable harness with tie straps. Install the connector in the holder on the fan shroud.
