Installing the engine coolant fan (FC)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

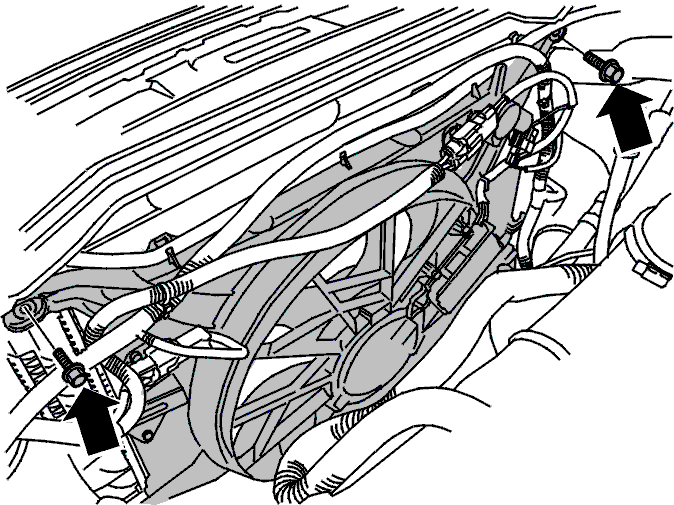

Carefully lower the fan shroud and align it with the holes at the sides of the radiator.
Tighten the 2 M6 mounting screws.
Install the upper oil cooler hose at the radiator unit (automatic transmissions only).
Connect the engine cooling fan (FC) connectors.
Press the hose down from the expansion tank into the holder on the fan shroud.
Secure the wiring to the holder. Use tie straps.
