Draining coolant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

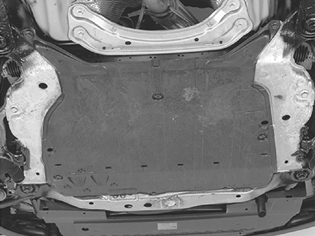

Fig 1: Identifying Splash Guard Under The Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the cap from the expansion tank.
the protective covers under the radiator and engine.

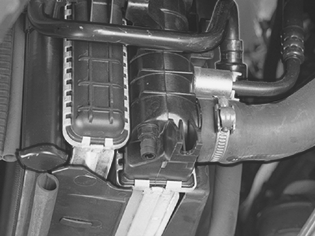

Fig 2: Identifying Engine Coolant Hose At Thermostat Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING:

Avoid skin contact with the coolant.

Use protective equipment.

HINT: Thread hoses onto the relevant nipple to collect the coolant. This will prevent spillage.

Open the nipples

The nipple for draining the engine is located on the pipe from the thermostat housing, above the front engine mounting.

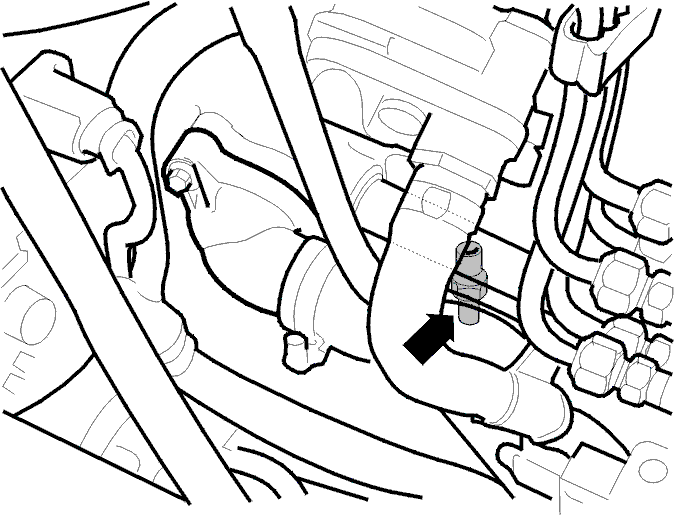

Fig 3: Identifying Component Location Of Radiator Draincock

Courtesy of VOLVO CARS OF NORTH AMERICA.

The nipple for draining coolant is on the lower left section of the radiator.

Drain the coolant into a container.

Close the nipples.

Install the protective covers under the radiator and engine.
