Control arms
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Detach the control arms from the link arm
- Remove the nut from the link arm
- Run the motor to the parked position

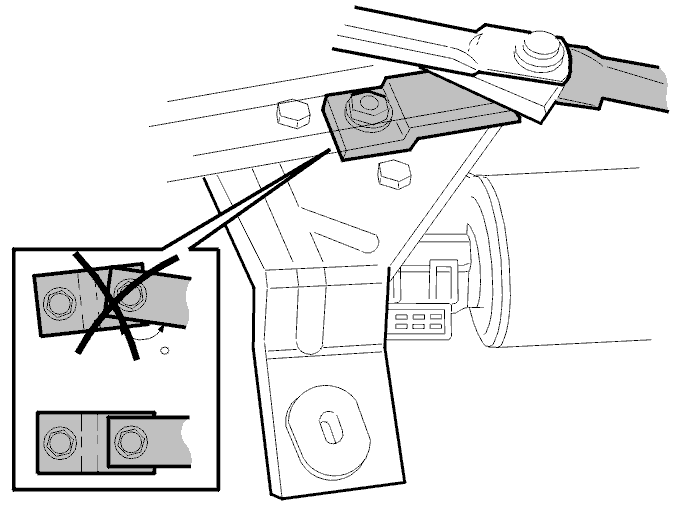

- Adjust the position of the link arm. The link arm must be parallel with the outer control arm
- Apply thread sealant liquid P/N 9961053-2 to the threads of the motor shaft
- Tighten the nut. Use a 20 mm fixed wrench on the link arm as a counterhold
- Install the control arms
- Test drive the mechanism.
