Installing rear end mountings (second row)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For tightening torques, see: Tightening torque .

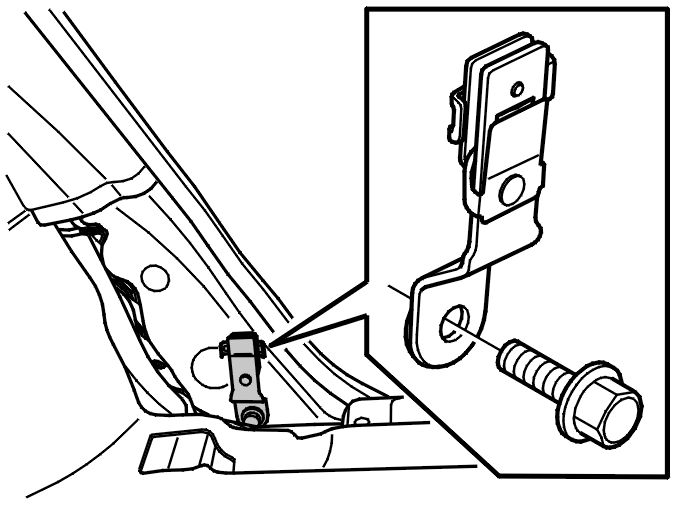

Fig 1: Identifying End Mounting And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the end mounting
1 M10 screw. Tighten.

Move any hoses for the air conditioning (A/C) system back into place.

Install the sill trim panel. See: Sill trim panel, replacing .

Press the seat belt into the end mounting.

NOTE:

A clear click is heard when the seat belt has locked correctly with the end mounting.

NOTE:

Also check that the seat belt has locked correctly with the end mounting by looking at the reverse of the end mounting.

Fig 2: Identifying Correct And Incorrect Positions For Lock Facing Against End Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

The position of the lock facing against the end mounting, with the seat belt fully inserted, must be:

"A " in Fig 2 = Correctly locked position.

"B " in Fig 2 = If the lock facing does not lock correctly with the end mounting, replace the end mounting with a new one, referring to "A ".

NOTE:

Check that the seat belt is secure by jerking it hard in an upwards direction.
