Removing the cushion

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

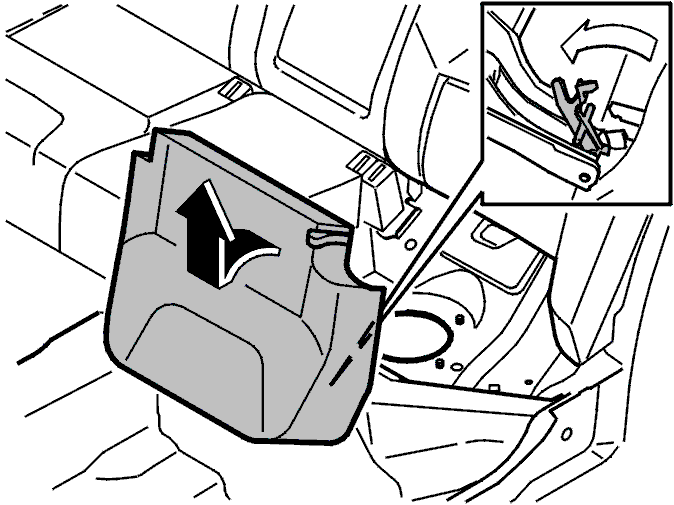

Fig 1: Lifting Up Seat Cushion On Rear Seat By Pulling Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the strap to release the locking
Fold the cushion up 45 degrees
Release the locking. Lift in lengthwise.

NOTE:

Lift at the front of the cushion, not the strap.
