Removing the front bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Bumper Casing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the left and the right trim strip.

Fig 2: Identifying Bumper Cover Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

the screws (1), 1 per side
the 2 x front screws
the 6 clips, on the upper side of the bumper cover
the 2 clips on the underneath of the bumper (5).

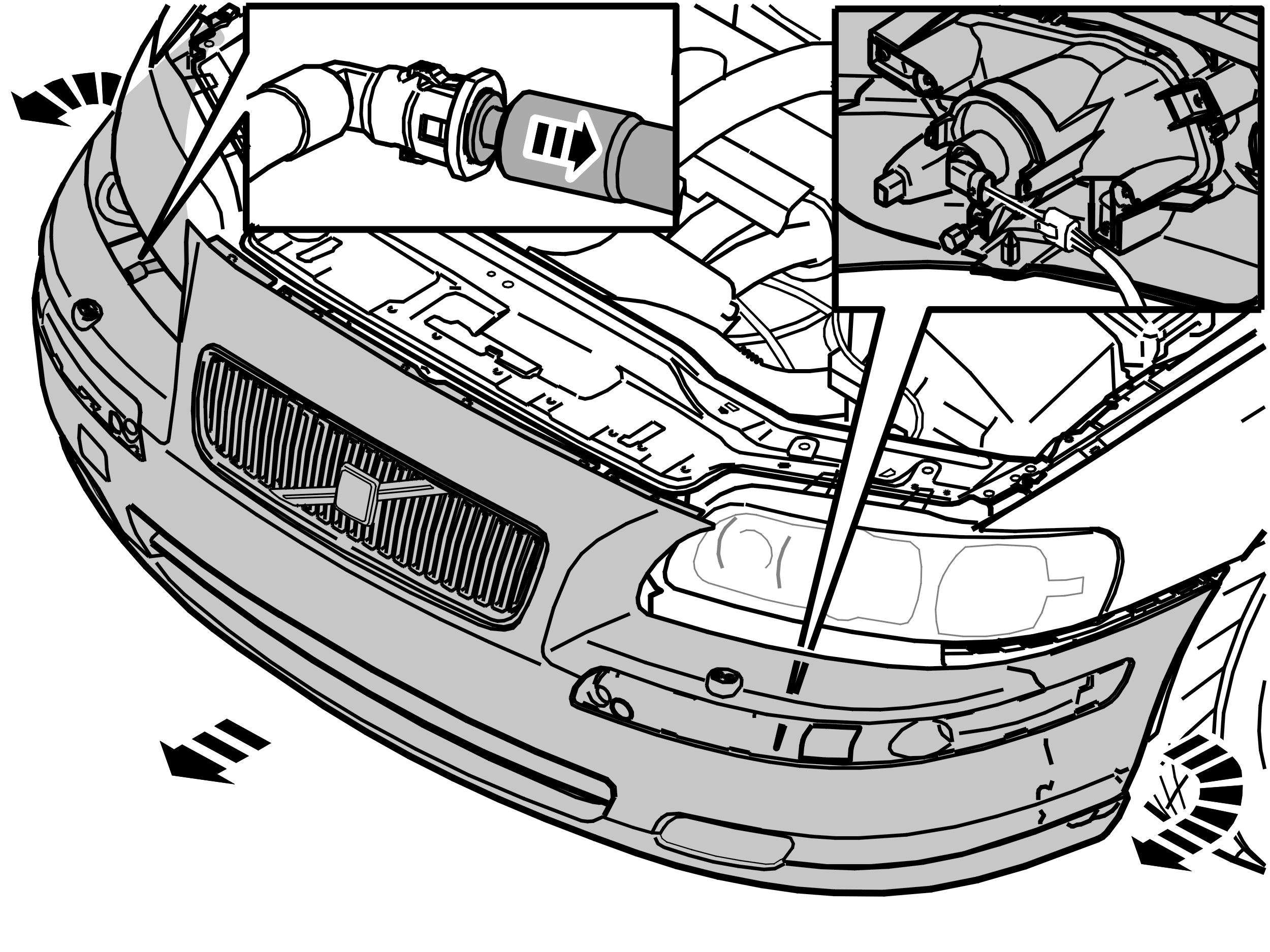

Fig 3: Locating Fog Lamp Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bumper forward while pulling both the sides outwards so that the edge releases from the side bracket.

HINT: This operation is easier with two people.

Separate the connector for the fog lamp.

Repeat the procedure on the other side.

Disconnect the quick-release connector for the headlamp washer (if applicable).
