Transferring components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

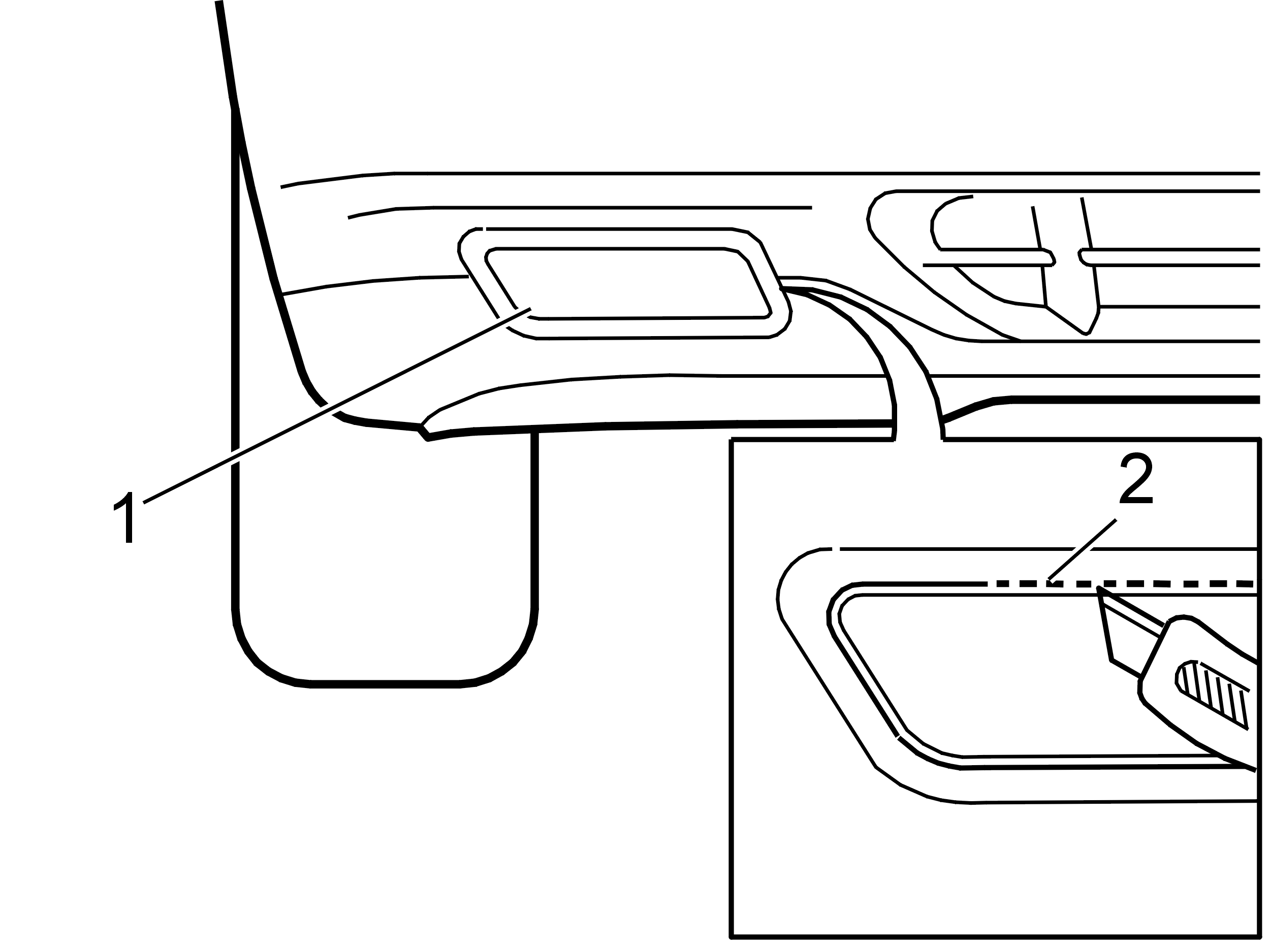

Fig 1: Cutting Out Embossed Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cars with fog lamps:

Cut out the embossed cover (1). Cut around the outer marking (2).

Cut a groove around the marking partway through the thickness. This is done to make a marking to follow when cutting.

Carefully cut through the rest of the cover.

Remove the cut out cover and trim the edges if necessary.

HINT: Use a hot knife.

Transfer the fog lamps. See Fog lamps, front, replacing .

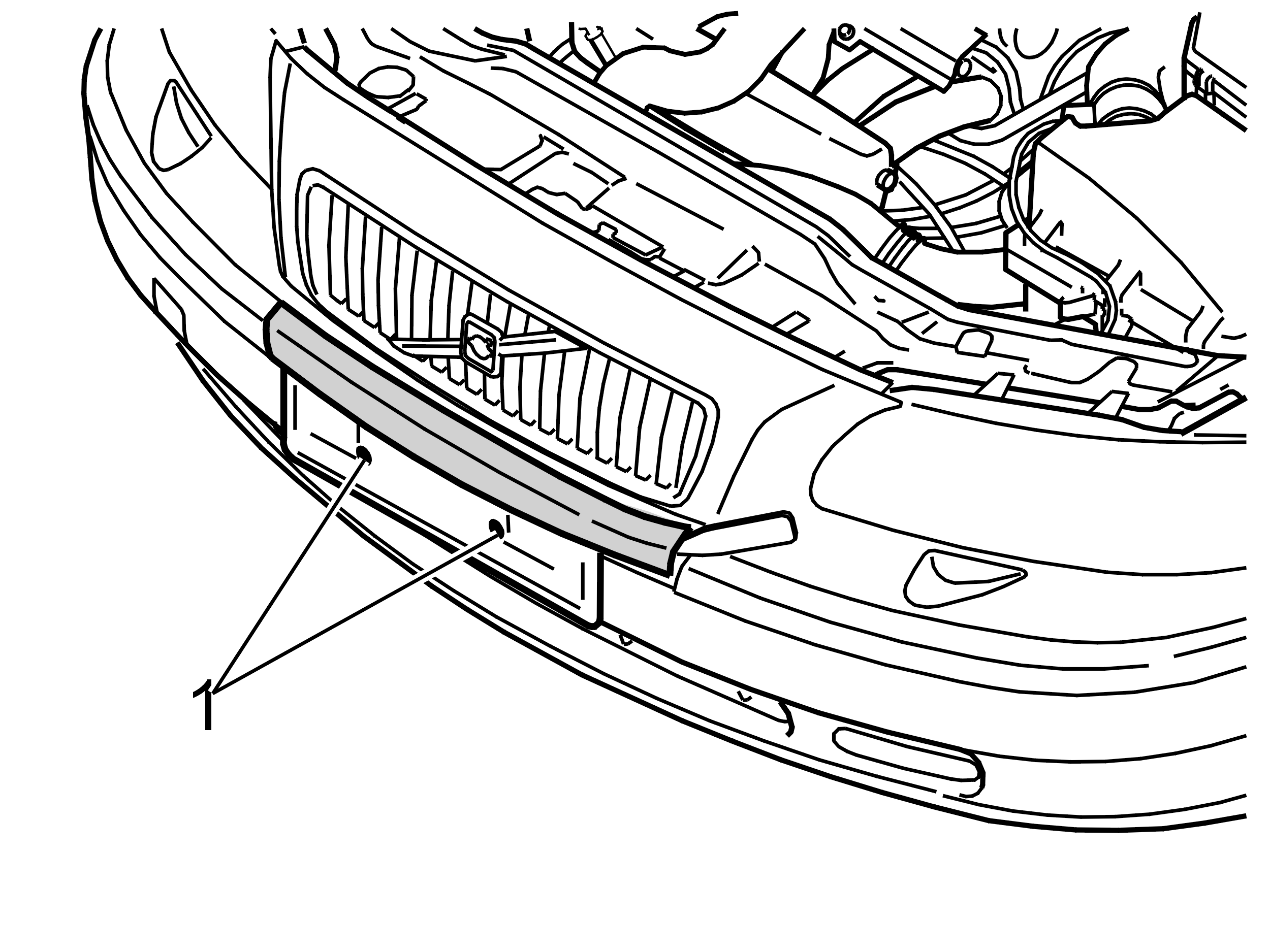

Fig 2: Center Trim Strip And License Plate Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer:

the radiator grille. See Radiator grille, replacing
the center trim strip
the license plate holder and the license plate.
