Removing the front bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

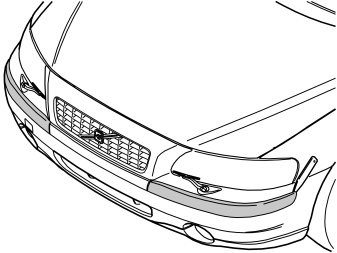

Fig 1: Front Bumper Casing

GLL107447

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the left and the right trim strip.

Fig 2: Front Bumper, Casing, Wiper Arms & Screws

GLL107450

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 2 screws. Use a 13 mm long socket
the 6 clips, on the upper side of the casing
the 2 clips on the underneath of the bumper (5).

Fig 3: Identifying Screw Pressed Backwards To Release Bumper Bracket

GLL107378

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the 1 screw (2) leaving it held in place by 3 threads.

Press in the screw so that the screw head bottoms out and the slide mounting releases.

Separate the connector for the fog lamp.

Repeat on the other side.

Fig 4: Identifying Bumper Pulled Forwards & Outwards To Release From Bumper Bracket

GLL107451

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bumper forward while pulling both the sides outwards so that the edges release from the slide mounting.

HINT: This operation is easier with two people.
