Installing the front bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For tightening torques, see Tightening torque .

Fig 1: Aligning Lugs On Bumper In Channels On Slide Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the lugs (3) on the bumper in the channels (4) on the slide mounting. Press at the top so that the lugs secure.

Press in the bumper cover as far as it will go.

Install the 2 M8 screws. Tighten.

HINT: This operation is easier with two people.

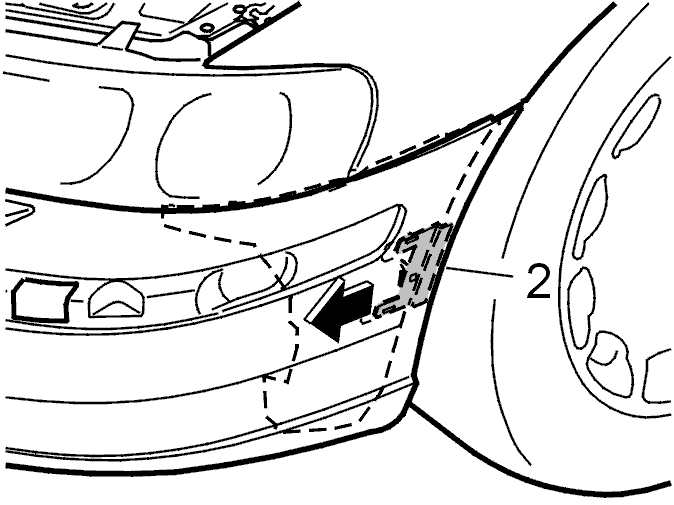

Fig 2: Identifying Screw Pressed Backwards To Release Bumper Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the 2 screws for the sliding mounts. Ensure that the slide mountings engage the bumper cover.

Install:

the 6 clips, on the upper side of the casing
the connectors for the fog lamps
the two clips on the underside of the bumper
the left and the right trim strip.
