Replacing dashboard environment panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Key Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove the key.

NOTE:

The key must be removed to ensure that the ignition is not switched on by mistake.

NOTE:

After the key has been removed: Wait 3 minutes before starting work.

Fig 2: Identifying Panel Above Gear Selector & Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

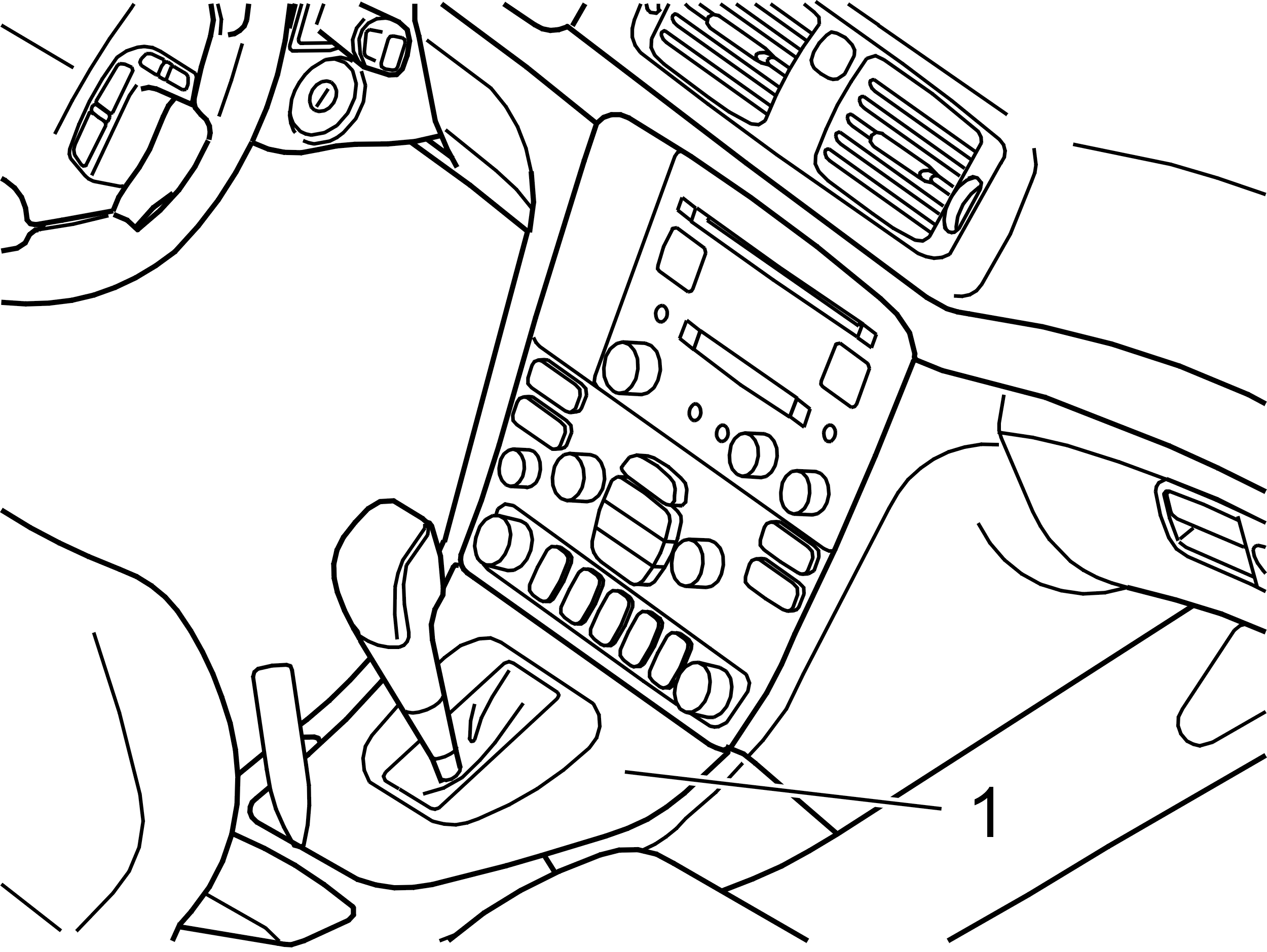

Remove the panel (1) above the gear selector:

Carefully pry off at the back using a weatherstrip tool.

NOTE:

The gear selector must be in the rearmost position before the comfort panel can be removed.

Fig 3: Prying Off Panel Above Gear Selector At Back Using A Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two screws (2) on the lower edge of the panel
the panel (3).
NOTE:
The radio component and the comfort panel are complementary and are mounted at the joint with hooked mountings.

Fig 4: Angling Dashboard Environment Panel Outwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: To facilitate removal: Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the center console and the dashboard environment panel.

HINT: Pull the dashboard environment panel downwards at the same angle.

HINT: The dashboard environment panel is correctly secured. Force is required to remove it.

connectors.

Lift out the panel.

Install:

In reverse order.

Fig 5: Identifying Component Taped On Back Of Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

If any of the outer hooks break off, this must be "rectified".

Tape the 3.5 mm thick component measuring 20 x 20mm on the back of the comfort panel. Use double-backed adhesive tape.

Fix the other side of the piece with double-backed adhesive tape so that there is a solid anchorage when reinstalling against the center console.
