Modification of auxiliary heater: Preparations
WARNING: This page is about a different car, the 2001 Volvo S80, 2000 Volvo S80, and 1999 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

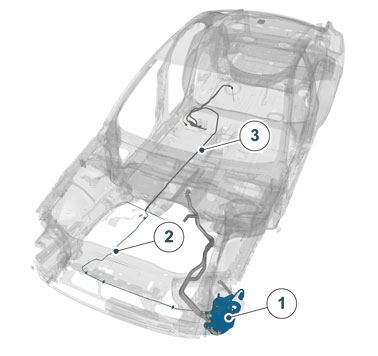

Affected vehicles with fuel heater (1) and chassis number according to list:
| Model | Factory | Chassis number |
| S80 (-06) | 1 | - 244450 |
| V70 (00-08) | 1 | - 180882 |
| V70 (00-08) | 2 | - 178572 |
| V70XC (01-) | 1 | - 51888 |
| S60 | 2 | - 102603 |
Assemble the installation kit (pos. 2+3) first regardless of if the car has rear-mounted fuel pump or not, depending on fuel type, 5-cylinder or 6-cylinder engine, and continue to the next step.
| Materials | Quantity | Part number |
| Parking heater, gasoline | 1 | 30661774 |
| Parking heater, diesel | 1 | 30661775 |
| Installation kit | 1 | 30756733 |
| Installation kit, 5-cyl gasoline | 1 | 31267436 |
| Installation kit, 5-cyl diesel | 1 | 31267437 |
| Installation kit, 6-cyl | 1 | 30780159 |
| Cable tie | 1 | 981597 |
| Hose | 1 | 983182 |
NOTE:
Replace the coolant hoses to and from the fuel heater if these are damaged, see VIDA which are to be used for which vehicle/engine version.
