Adjusting the parking brake

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: As the graphics in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the graphics is always correct.

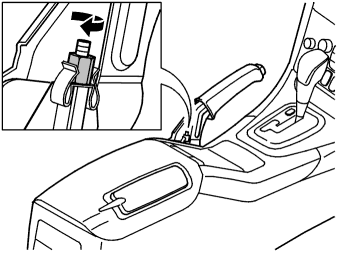

Fig 1: Adjusting Parking Brake

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the dust boot on the parking brake lever (pull straight up).

Fold up the plastic cover.

Adjust the parking brake.

NOTE: Full brake effect can be obtained between the second and fifth ratchet teeth. Check so that the parking brake is not constantly applied.

NOTE: After replacing the brake shoes for the parking brake the car must be test driven and the parking brake adjusted if necessary.
