Installing the spring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

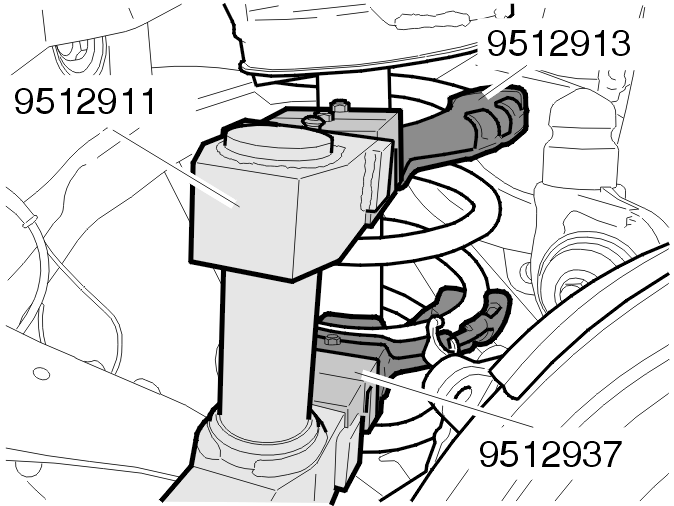

Fig 1: Removing/Installing Spring Use Hydraulic Piston, Claw And Extension Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use hydraulic piston: 9512911 using claw: 9512913 and extension rod: 9512937 .

Compress the new spring. Thread it into the control arm.

NOTE:

Ensure that the spring is gripped in the same place as the old spring.

Install:

the spring in the control arm
the striker plate: 9997079
the grommet
release the spring.

Remove the hydraulic piston: 9512911 using claw: 9512913 and extension rod: 9512937 .

NOTE:

Lubricate the rubber ring using soap solution for easier installation.

Fig 2: Twisting Spring Until There Is A Clearance Of 15 mm Between End Of Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Twist the spring until there is a clearance (A) of 15 mm between the end of the spring and the raised portion of the control arm.
