Removing the spring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Fixing Nut On Shock Absorber

Courtesy of VOLVO CARS OF NORTH AMERICA.

Relieve the load on the spring seat using hydraulic tool 9512911 together with plates 9512914 .

Remove:

the fixing nut on the shock absorber. Use socket 9995469 and a 3/8" Torx-wrench as a counterhold.
the spring seat
the spring
the rubber bump stop and gaiter.

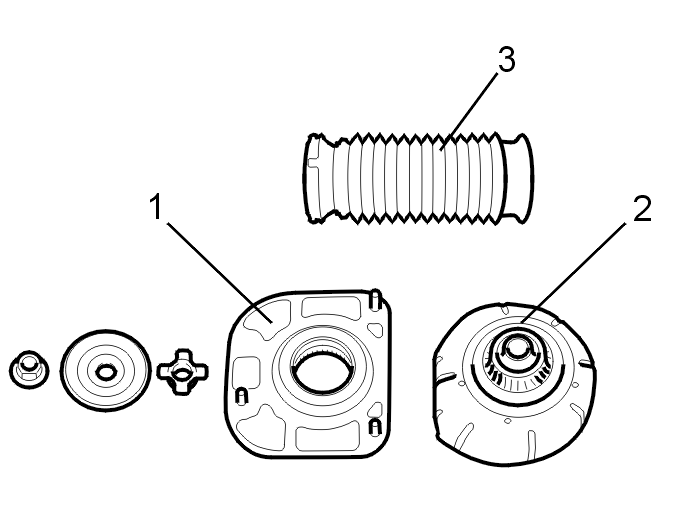

Fig 2: Shock Absorber Support Plate, Spring Seat And Rubber Bump Stop With Boot

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the shock absorber support plate (1), the spring seat (2) and the rubber bump stop with boot (3) are undamaged. Replace if necessary.
