Installing the spring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

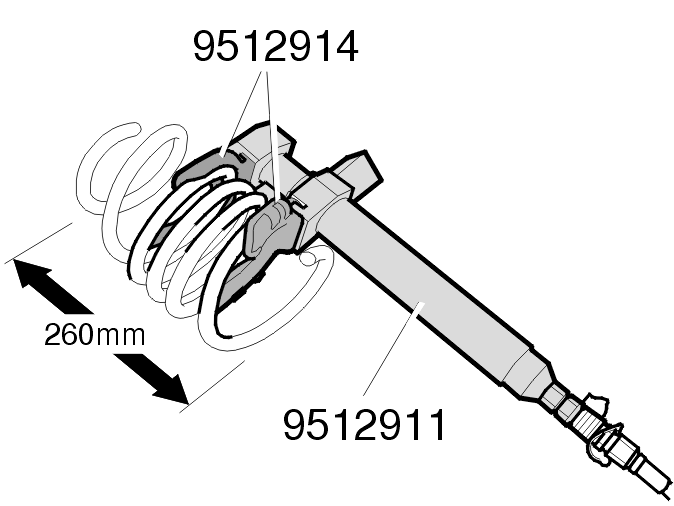

Fig 1: Compressing New Spring To A Length Of Approximately 260 mm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Compress the new spring to a length of approximately 260 mm. Use hydraulic tool 9512911 together with plates 9512914 .

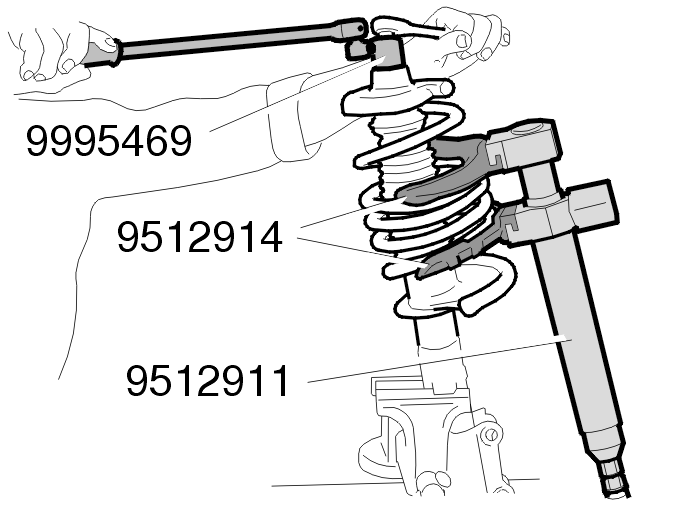

Fig 2: Removing/Installing Fixing Nut On Shock Absorber

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the bump stop with the boot
the spring
the spring seat.

Install the fixing nut. Tighten. See Tightening torque . Use socket 9995469 and a 3/8" Torx-wrench as a counterhold.
