Installing the spring strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

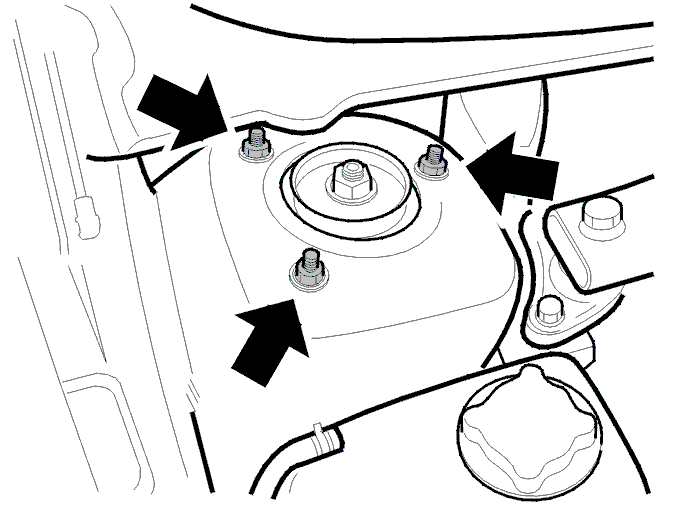

Fig 1: Locating Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the spring strut in the bodywork using new nuts. Tighten. See Tightening torque .

Fig 2: Installing Spring Strut On Wheel Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the spring strut on the wheel spindle. Use new screws and new nuts
Adjust the spring strut and wheel spindle to the measured value.

NOTE:

Ensure that measurement is performed at same points as when removing.

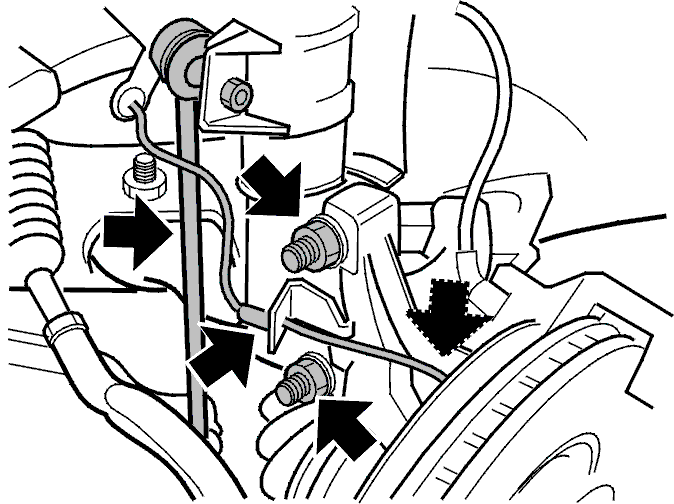

Fig 3: Identifying Spring Strut To Wheel Spindle Bolts And Nuts, Anti-Roll Bar And ABS Wire

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten, see: Tightening torque . Use protractor 9512050 .

Install:

the anti-roll bar link to the spring strut. Use a new nut. Tighten. See: Tightening torque .
Counterhold using a Torx wrench to prevent damage to the boot.
The ABS sensor cable in the bracket
the wheel. See Installing wheels .

Check and adjust the headlamps in accordance with: Headlamps, aligning .
