Measuring Before Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

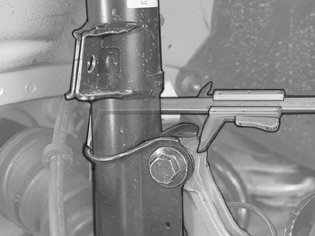

Fig 1: Identifying Measurement Of Wheel Spindle And Spring Strut At Upper Screw
GLL109809Courtesy of VOLVO CARS OF NORTH AMERICA.

The measurements are made so that the same camber angle can be obtained when installing.

Measure over the wheel spindle / spring strut at the upper screw as illustrated.

Before measuring clean off any dirt from the measuring surfaces.

Note the measurement.
