Tightening The Ball Joint

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Installing Ball Joint Nut With Torx Wrench As Counter Hold

Courtesy of VOLVO CARS OF NORTH AMERICA.

For vehicles with aluminum control arms:

Install a new nut on the ball joint. Tighten. See: Tightening torque . Use a Torx wrench as a counterhold.
NOTE:
Make sure that the mating surfaces on the ball joint and control arm are clean.

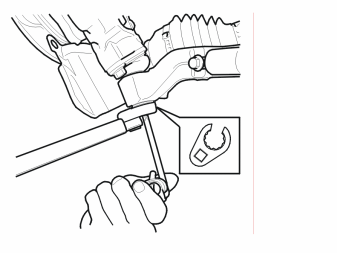

Fig 2: Identifying Ball Joint Nut & Tool 9995467

Courtesy of VOLVO CARS OF NORTH AMERICA.

For vehicles with steel control arms:

See 9995467
Use socket as adapter for the torque wrench or a ring wrench adapter that is designed for the torque wrench.

Install a new nut. Tighten in accordance with: Tightening torque
Rust protect the thread outside the nut.
