Removing The Right Control Arm

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

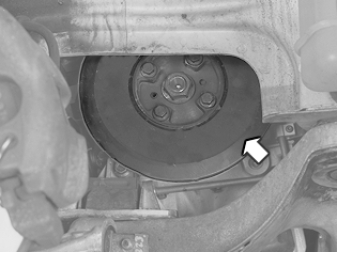

Fig 1: Identifying Vibration Damper

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to cars with 6 cylinder engines:

Remove the vibration damper.

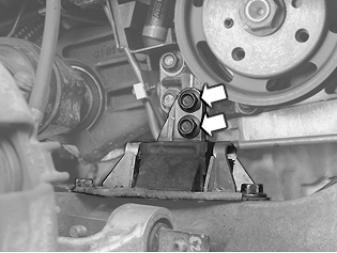

Fig 2: Identifying Right-Hand Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

For all:

Remove both screws for the right-hand engine mounting.
Lift the right-hand side of the engine approximately 25 mm to expose the control arm screw. Use a mobile jack.
NOTE:
Use a wooden block as a shim.

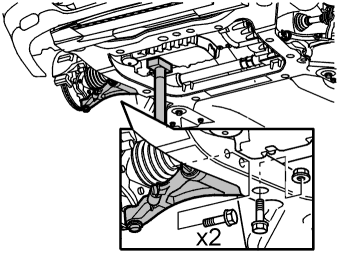

Fig 3: Identifying Sub-Frame Control Arm Screws And Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the screws and the nut for the control arm in the sub-frame
the control arm.
