Removing The Left Control Arm

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Applies to cars equipped with the 4T65 EV/GT transmissions:

Remove the screw for the front motor mounting.

For all:

Lift up the left-hand side of the engine approximately 25 mm to expose the control arm screw. Use a mobile jack.
NOTE:
Use a wooden block as a shim.

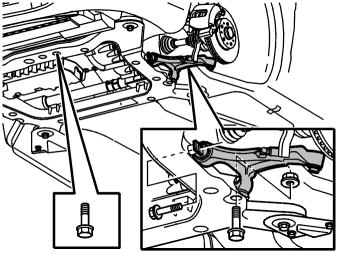

Fig 1: Identifying Screws And Nut For Sub-Frame Control Arm

GLL104609

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the screws and the nut for the control arm in the sub-frame
the control arm.
