Releasing The Spring Strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Catch For Control Arm Spring Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

For all:

Press down the control arm 9997076
Position the catch at (1). Release the spring strut from the control arm.

NOTE:

If the catch is placed by (2) the rubber boot on the ball joint may be damaged.

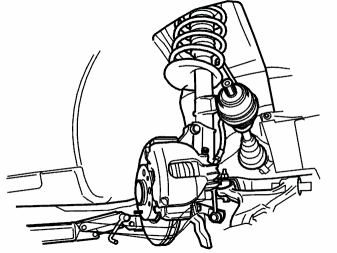

Fig 2: Identifying Spring Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press out the drive shaft completely. Hang up the spring strut using a retaining strap against the jacking point. Do not damage the ball joint boot. Hang up the drive shaft from a hook 9995045 .
Remove the splash guard under the engine.

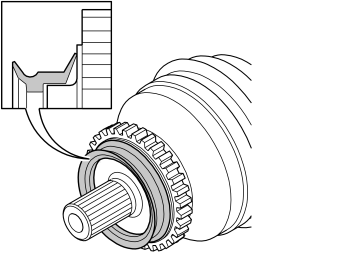

Fig 3: Identifying Stub Axle CV Joint Housing Sealing Ring Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Later models have a rubber seal on the constant velocity joint. Do not damage the seal. It will be needed for installation.
