Installing The Right Control Arm
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

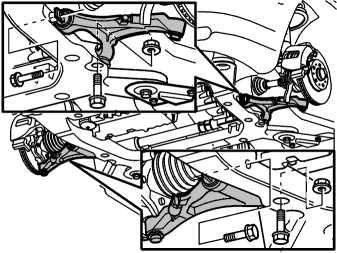

- Install the control arm. Use new screws
- Tighten the front screws. Tighten to: Tightening torque . Use protractor 9512050
- Tighten the rear screw and the nut. Tighten to: Tightening torque
- Lower the engine
- Remove the mobile jack
- Tighten the screws on the right engine mounting. Tighten to 35 Nm . Angle-tighten 90° . Use new screws.
Applies only to cars with 6 cylinder engines:
- Install the oscillation damper. Use new screws. Tighten to: Tightening torque
