Disconnecting Drive Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

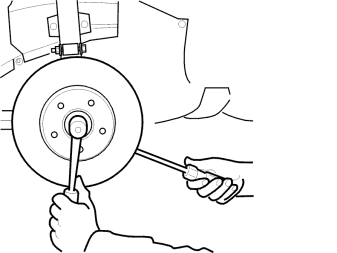

Fig 1: Removing Drive Shaft Screw Using A Screwdriver As A Counter Hold On Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the wheel
the drive shaft screw. Use a screwdriver as a counterhold on the brake disc

Slacken off the drive shaft in the hub by knocking the drive shaft into the hub approximately 10-15 mm.

Use a brass drive punch and copper hammer.

Fig 2: Driveshaft In Hub

Courtesy of VOLVO CARS OF NORTH AMERICA.

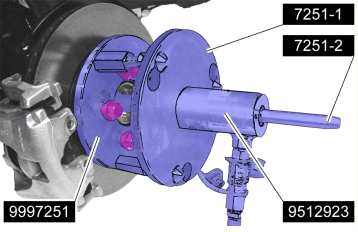

If the driveshaft is securely attached in the hub, use a press tool together with hole cylinder.

See 9997251
See 9512923
